SRC-100

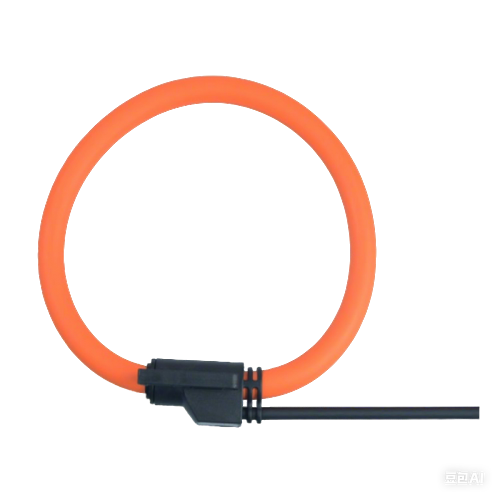

Rogowski Coils
12mm cross section. Standard output level 333mV/1kA@50Hz
- Features
-
- Transducer
- Coil length: from 30 to 300 cm
- Coil diameter: 12.4 ±0.2 mm
- Fastening: bayonet holder
- Material: thermoplastic UL94-V0
- Displayed Parameters
-
- Electrical charateristics
- Nominal output rate: 333mV/kA @50Hz (RMS values)
- Max measurable current: 65 kA
- Coil resistance: 300 … 2000 Ω
- Accuracy: Class 0,5-A1 according to IEC 61869-10
- Frequency: 50/60 Hz
- Overvoltage category: 1000V CATIII, 600V CAT IV
- Pollution degree: 2
- Insulation test voltage: 7400 VRMS / 5 s
- Connection cable
- Type: 3 x 22 AWG shielded
- Length: 3 m. Other lengths on request: 5, 7, 10, 15 m
- Certifications & Standards
-
- CE ,UKCA, IEC 61869-10
- Product information
- 12mm cross section. Standard output level 333mV/1kA@50Hz
Rogowski coil SRC100 (cross section 12mm) is a flexible current transducer based on Rogowski principle. SRC100 coils are available in different sizes and can be supplied according to customer's design, therefore they can be used in all those applications, in which traditional transducers are not fitting due to its size and/or weight. Flexible Rogowski coil is an extremely confortable solution for current measurement and can be used in a number of cases where traditional current transducer is not the adequate solution.
SRC100 coil is provided with a shield against the influence of external magnetic fields, therefore it grants a stable measurement from low currents to hundreds of kA. The Rogowski coils must be connected to an electronic integrator for 90° phase shift compensation and frequency equalization.
Accuracy class 0,5 (IEC 61869-10)
