Roc231
Energy Meters
Three-phase multifunctional smart meter
- Features
-

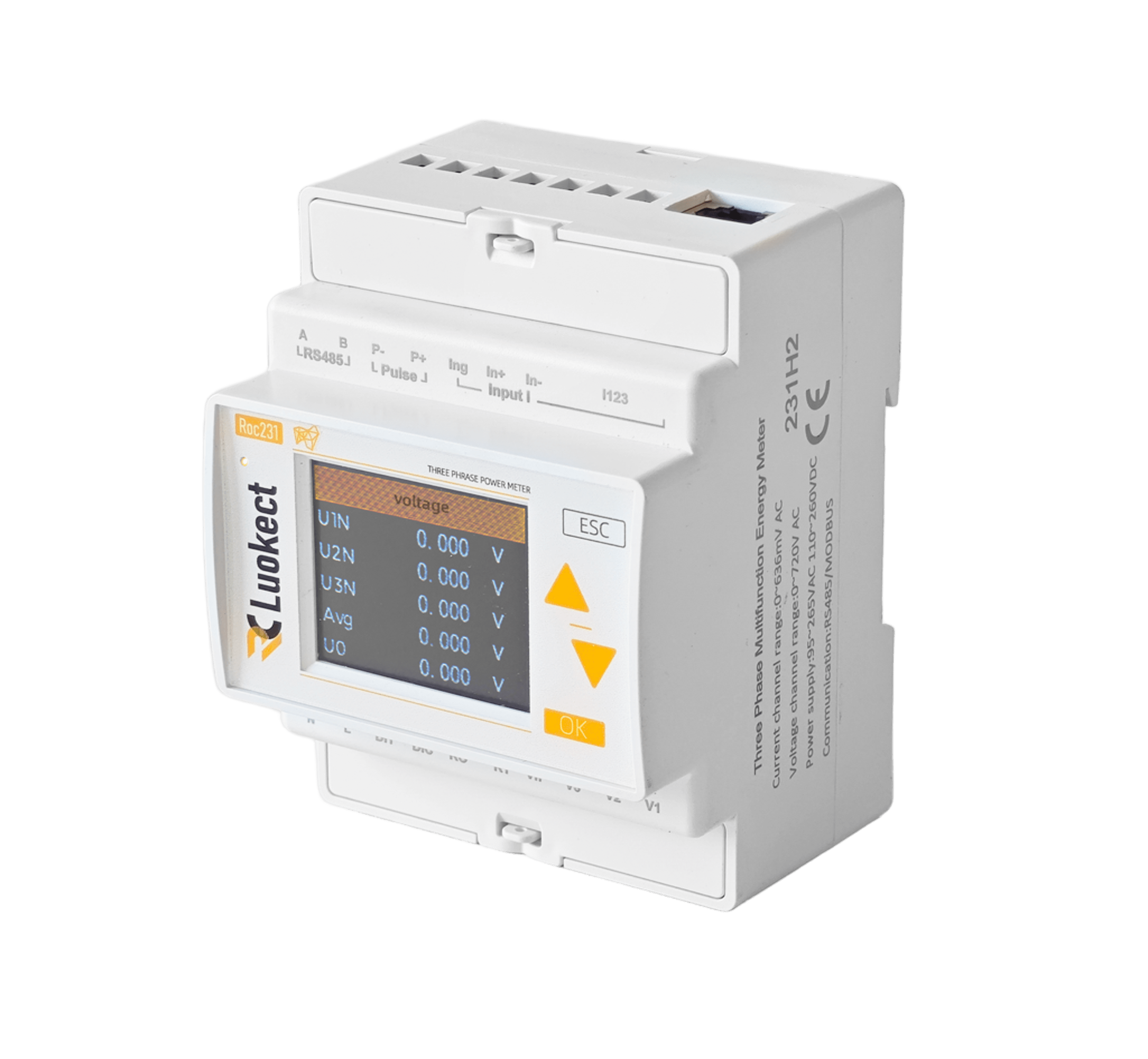

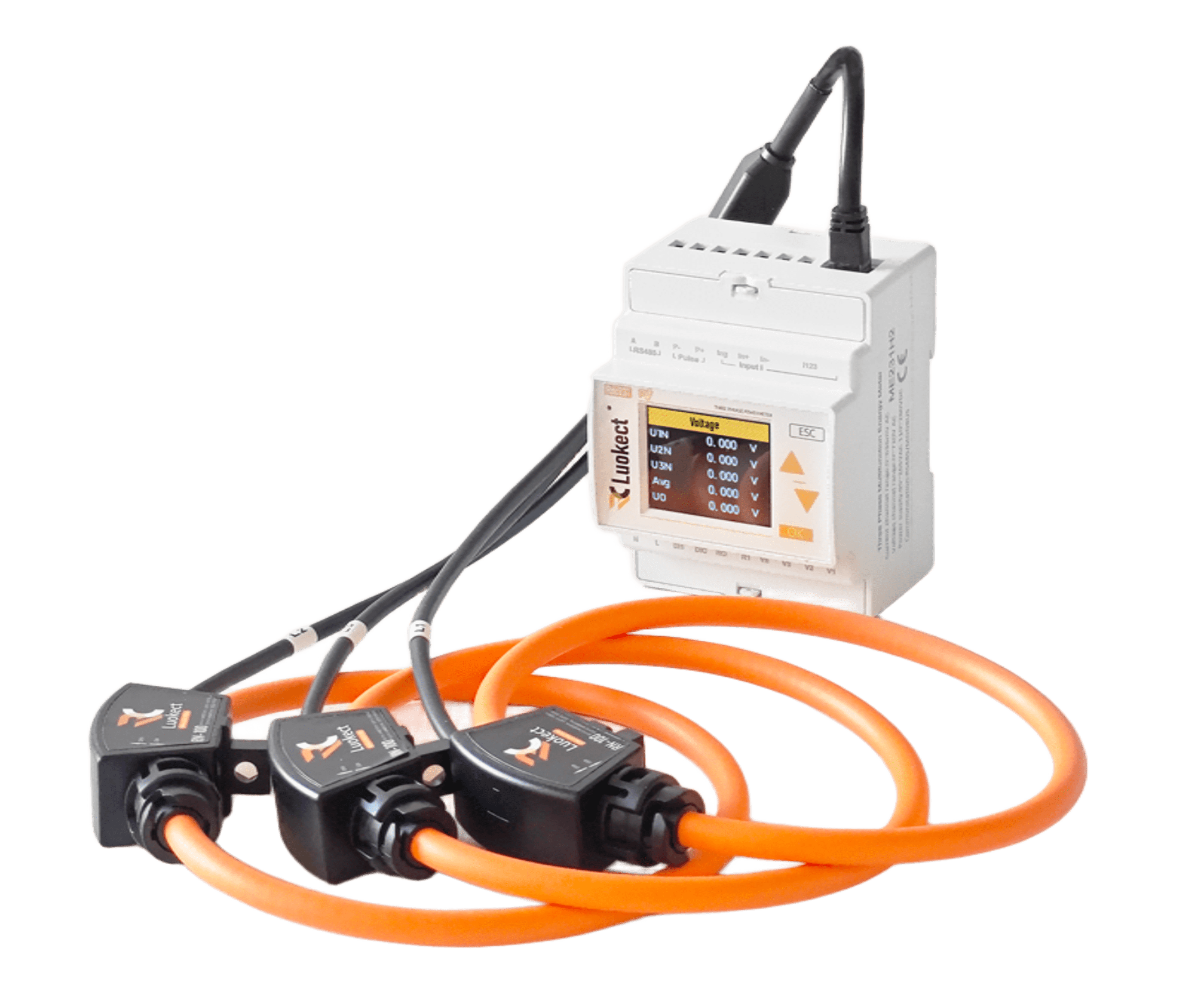

- The Roc231 is a DIN-Rail three-phase multifunctional smart meter that supports externally connected with open type Rogowski coil or voltage type CT, it can realize none dismantling wire test, simplify test steps, save construction cost, and is more convenient for engineering test as well as the inspection and maintenance of distribution system.
- The Roc231 support systems of single-phase and three-phase. It can measure multiple electrical parameters such as current, voltage, power factor, harmonics, power, energy and other electrical parameters of L1,L2,L3.The standard RS485 communication interface can be compatible with various configuration systems through the standard MODBUS-RTU protocol.
- Displayed Parameters
-
- Certifications & Standards
-
- Product information
- Three-phase multifunctional smart meter
| Instantaneous value | |
| Phase Voltage | U1,U2,U3,AVG |
| Line Voltage | U12,U23,U31,AVG |
| Current | I1,I2,I3,AVG,IN |
| Grid Frequency | F1,F2,F3,∑ |
| Power Factor PF | PF1,PF2,PF3,∑ |
| Fundamental power factor DPF | DPF1,DPF2,DPF3,∑ |
| Active power | P1,P2,P3,∑ |
| Reactive power | Q1,Q2,Q3,∑ |
| Apparent power | S1,S2,S3,∑ |
| Energy | |
| Active energy Pos. | EP1,EP2,EP3,∑ |
| Active Energy Neg. | EP1,EP2,EP3,∑ |
| Reactive Energy Pos. | EQ1,EQ2,EQ3,∑ |
| Reactive energy Neg. | EQ1,EQ2,EQ3,∑ |
| Apparent Energy | ES1,ES2,ES3,∑ |
| Tariff Energy | ET1,ET2, ET3,ET4, ET5,ET6 |
| Harmonics | |
| Voltage Harmonic Distortion | THD (Total harmonic percentage), TOHD (Odd total harmonic percentage), TEHD (Even total harmonic percentage), phase L1.L2.L3 1-50th harmonic percentage, phase ABC 1-50th harmonic voltage value |
| Voltage Harmonic Value | |
| Current Harmonic Distortion | THD （Total harmonic percentage）, TOHD (Odd total harmonic percentage), TEHD (Even total harmonic percentage), phase L1.L2.L3 1- 50th harmonic percentage, phase ABC 1-50th harmonic current value |
| Current Harmonic Value | |
| Phasor diagram | |
| Phasor diagram | between voltage and current |
| Phase Sequence | voltage and current |
| Voltage Angle | U1,U2,U3 |
| Current Angle | I1,I2,I3 |
| UI Angle | UI1,UI2,UI3 |
| Demand | |
| Demand | P,Q,S |
| Active power DMD Max. | P and Time |
| Reactive power DMD Max. | Q and Time |
| Apparent power DMD Max. | S and Time |
| Unbalance | |
| Voltage unbalance | Negative Sequence, zero Sequence |
| current unbalance | Negative Sequence, zero Sequence |
| Max.&Min. | |
| Phase Voltage | U1,U2,U3,AVG |
| Line Voltage | U12,U23,U31,AVG |
| Current | I1,I2,I3,AVG,IN |
| Active power | P1,P2,P3,∑ |
| Reactive power | Q1,Q2,Q3,∑ |
| Apparent power | S1,S2,S3,∑ |
