STP-GW3.0

Rogowski Coils

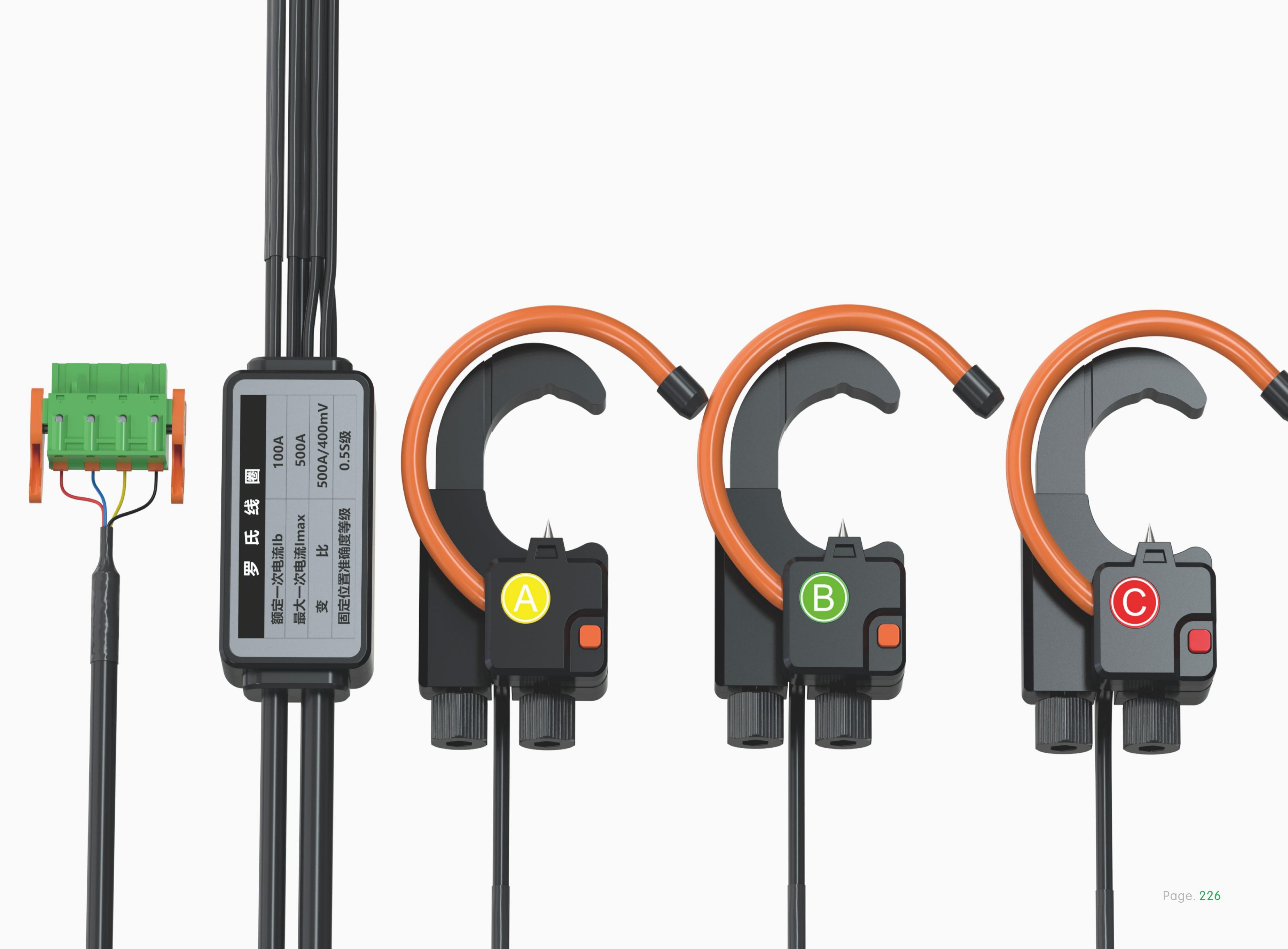

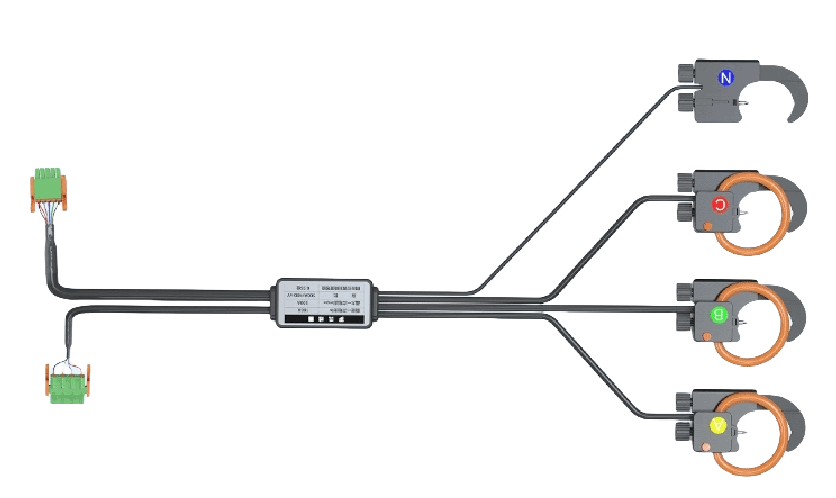

Smart Grid Rail Table Rogowski coil Kit STP-GW30 Standard output level 400mV/500A@50Hz

产品图1
产品图1
缩略图1
缩略图1
Features
  • Adopt magnetic shielding flexible core piercing structure, the current transformer and currenttransmitter are combined into one body design.
  • Six comprehensive protection functions: input overload protecfion, output overcurrent protectionlong short circuit protection, working power overvoltage protection, working power reverseconnection protection, transient surge current TvS protection
  • Intelligent monitoring system for load current of generators, low-voltage distribution cabinets air conditioners,fans. etc
  • High reliability, high stability,high cost performance
Displayed Parameters
  • Measuring range 0~400A
  • Accuracy 0.5%(can be customized)
  • Aperture size 50mm、80mm、120mm、220mm(can be customized)
  • Output signal DC4~20mA、DC0~20mA、DC0~10V、DC0~5V、485)Special can be customized
  • Load capacity voltage output::5mA,current output:6V
  • Response time 25ms
  • lsolation of pressure 3KV/50Hz,1Min
  • Electrical source +24V、+12V
Certifications & Standards
  • CE
Product information
Smart Grid Rail Table Rogowski coil Kit STP-GW30 Standard output level 400mV/500A@50Hz

STP-GW-30 is a flexible current sensor that can be directly integrated with portable devices such as power analyzers to form highly adaptable systems. Its technical specifications are listed in Table L.1. The Rogowski coil has a rated current (Ib) of 100A and a maximum current of 500A, meeting the practical application requirements of metering boxes. The default correspondence between the primary-side current and secondary-side voltage of the coil is set at 500A/400mV for the recommended specification with an integrator.
