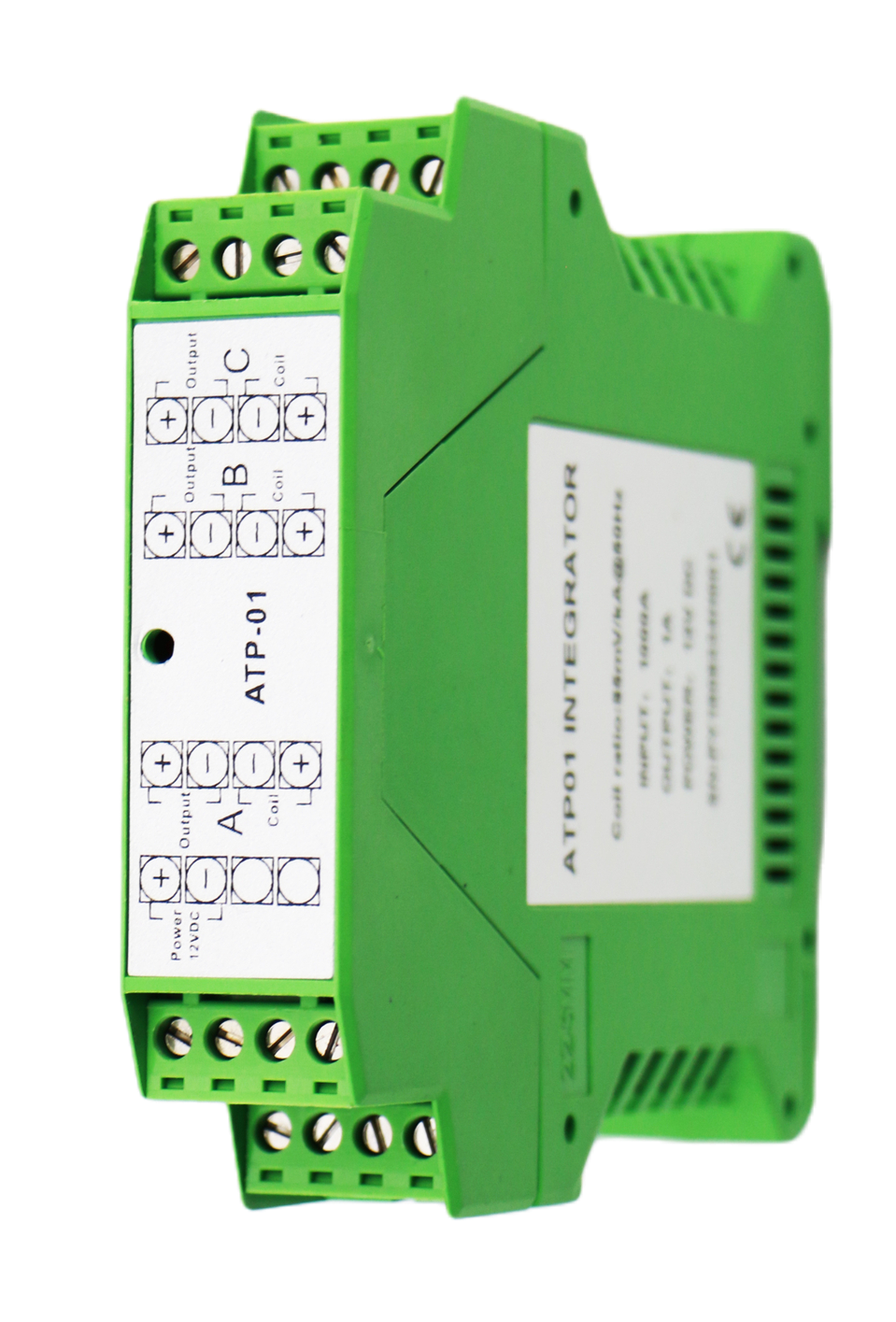

Integartor 1A

Integrator for Rogowski Coils

1A nominal current input, 3Phase or 1Phase

产品图1
缩略图1
Features
  • Easy-to-install, plug-and-play integrator used with any protection relay, energy meter, or device with a 1A nominal current input
  • Protection Class: 5P20 (IEC 61869-2)
  • Wide current sensing range from 0.25A to 100,000A for compatibility across any system
  • Field-configurable CT ratios: 50A, 200A, 500A, 2000A, and 5000A
  • Compatible with both 50Hz and 60Hz frequency systems
  • Paired with a single rope-style Rogowski current sensor to easily fit tight spaces with 95% less weight than a traditional relay class CT (sold separately)
Displayed Parameters
  • Protective Relay Class Integrator pairs with Rogowski coils for any devices that require 1A nominal CT input. It allows for five field-configurable CT ratios between 2.5A-100,000A. Works in both 50Hz and 60Hz systems. Flex Rogowski coils and the power supply are sold separately.
Certifications & Standards
Product information
1A nominal current input, 3Phase or 1Phase
