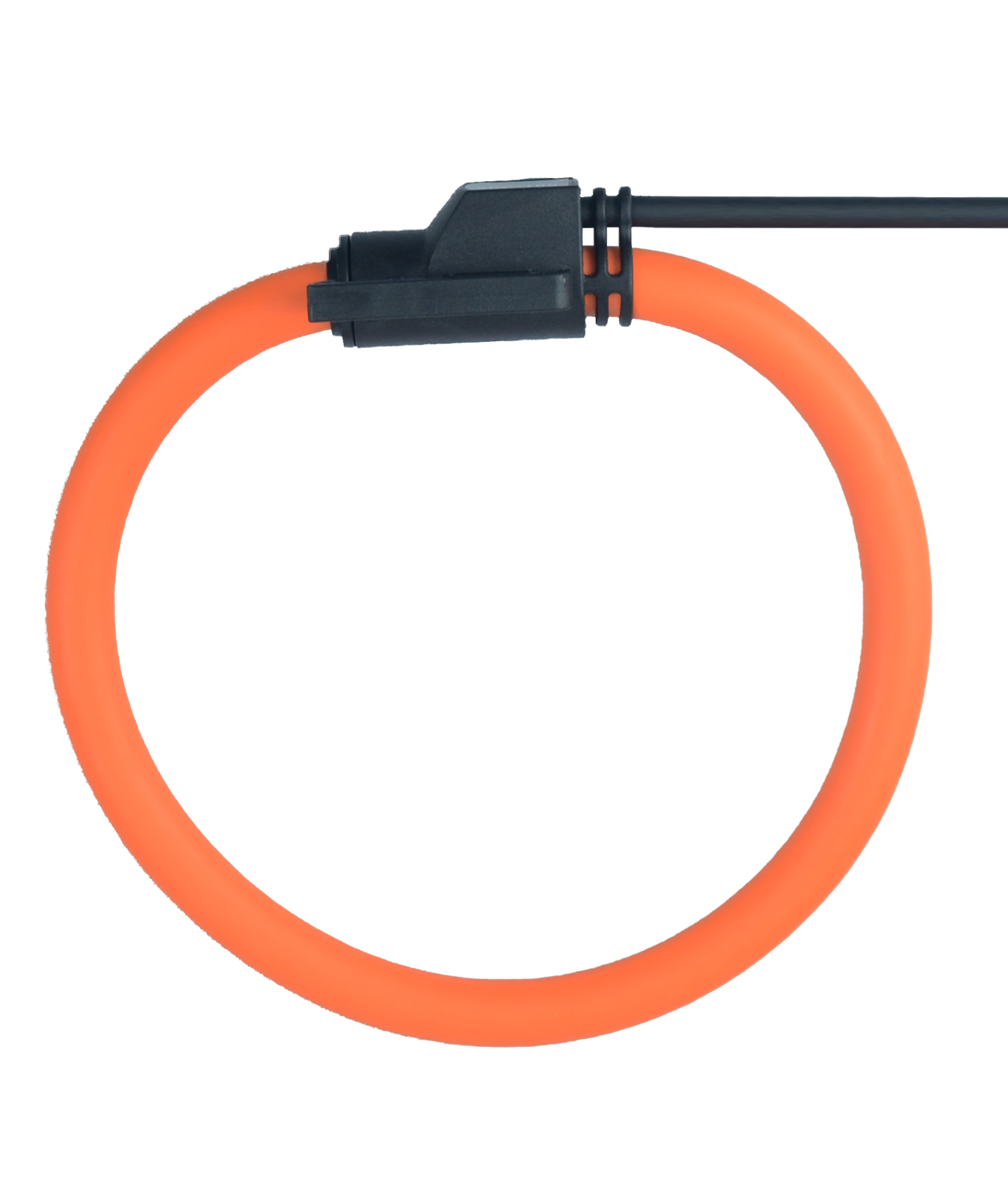

GRC-100

Rogowski Coils

14mm cross section. Standard output level 500mV/1kA@50Hz

产品图1
缩略图1
Features
  • Transducer
  • Coil length: from 30 to 500 cm
  • Coil diameter: 14 ±0.2 mm
  • Fastening: bayonet holder
  • Material: thermoplastic UL94-V0
Displayed Parameters
  • Electrical charateristics
  • Nominal output rate: 500mV/kA @50Hz (RMS values)
  • Max measurable current: 65 kA
  • Coil resistance: 50 … 500 Ω
  • Accuracy: Class 0,5-A1 according to IEC 61869-10
  • Frequency: 50/60 Hz
  • Overvoltage category: 1000V CATIII, 600V CAT IV
  • Pollution degree: 2
  • Insulation test voltage: 7400 VRMS / 5 s
  • Connection cable
  • Type: 3 x 22 AWG shielded
  • Length: 3 m. Other lengths on request: 5, 7, 10, 15 m
Certifications & Standards
  • CE, IP61,Rohs2.0
Product information
14mm cross section. Standard output level 500mV/1kA@50Hz
