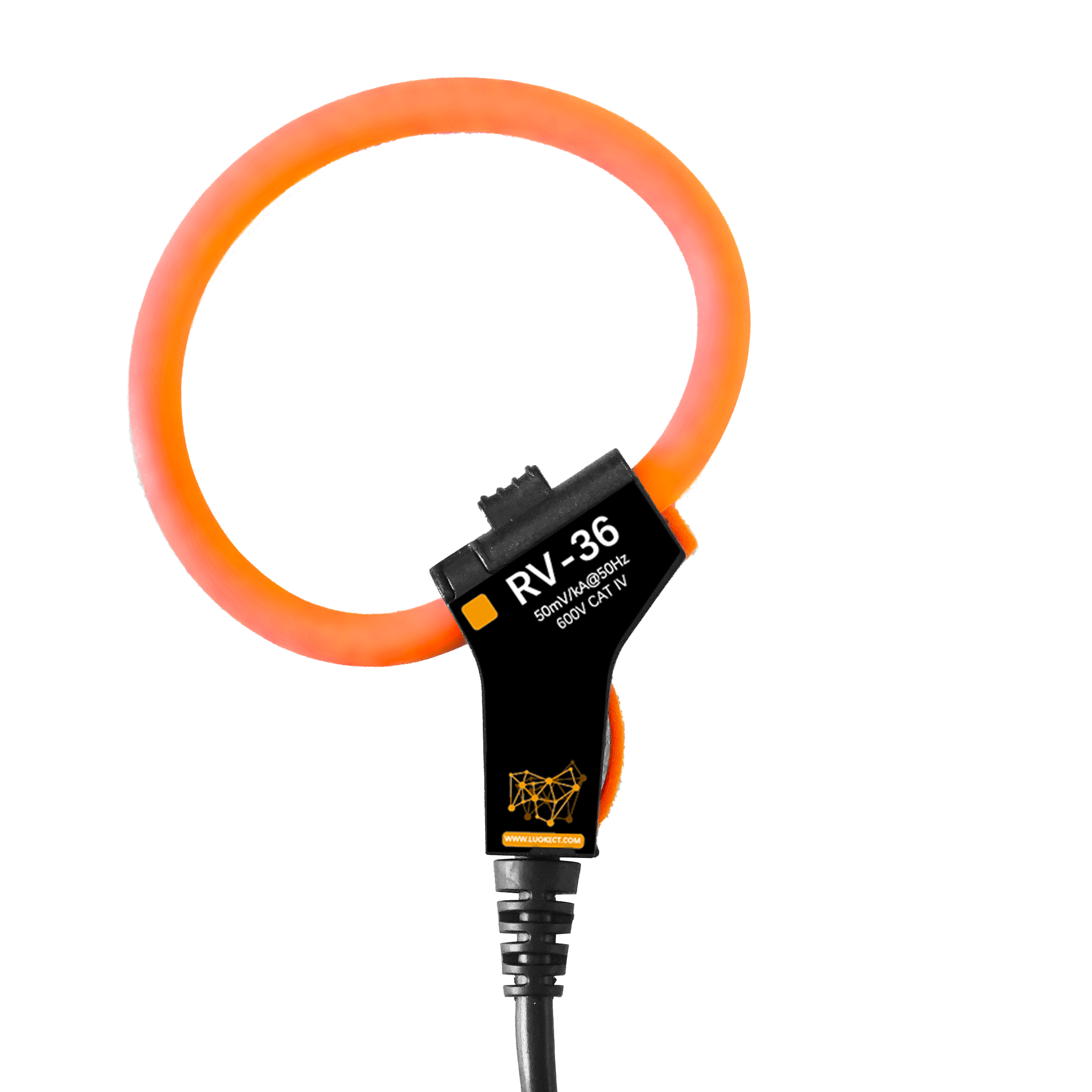

RV-36

Rogowski Coils

6mm Section Standard output level 50mV/1kA@50Hz . High accuracy Mini Rogowski coil

产品图1
缩略图1
Features
  • Transducer
  • Coil length: from 30 to 300 cm
  • Coil diameter: 6 ±0.2 mm
  • Fastening: bayonet holder
  • Material: thermoplastic UL94-V0
Displayed Parameters
  • Electrical charateristics
  • Nominal output rate: 50mV/kA @50Hz (RMS values)
  • Max measurable current: 65 kA
  • Coil resistance: 50 … 250Ω
  • Accuracy: Class 0,5-A1 according to IEC 61869-10
  • Frequency: 50/60 Hz
  • Overvoltage category: 1000V CATIII, 600V CAT IV
  • Pollution degree: 2
  • Insulation test voltage: 7400 VRMS / 5 s
  • Connection cable
  • Type: 3 x 22 AWG shielded
  • Length: 3 m. Other lengths on request: 5, 7, 10, 15 m
Certifications & Standards
  • CE, IP67,Rohs2.IEC 61869-10
Product information
6mm Section Standard output level 50mV/1kA@50Hz . High accuracy Mini Rogowski coil
