NRC-150

Rogowski Coils

8 mm cross section, with UL2808 certification. Standard output level 100mV/1kA@50Hz

产品图1
缩略图1
Features
  • Transducer
  • Coil length: 15 … 50 cm
  • Cord diameter: 7.2 ±0.2 mm
  • Fastening: bayonet holder
  • Weight: from 150 to 500 g
  • Jacket material: Polyphenylene and thermoplastic elastomer
  • Type: 5 x 22 AWG shielded
  • Length: 3 m. Other lengths on request: 5, 7, 10, 15 m
Displayed Parameters
  • Electrical charateristics for model without integrator
  • Nominal output rate: 100 mV / kA @ 50 Hz (RMS values)
  • Max measurable current: 600 A with 15 … 28 cm coil length
  • 2500 A with 29 … 41 cm coil length
  • 10000 A with 42 … 50 cm coil length
  • Coil resistance: 170 … 690 Ω
  • Accuracy: Class 1-A1 according to IEC 61869-10
  • Frequency: 50/60 Hz
  • Overvoltage category: 1000 V CAT III, 600 V CAT IV
  • Pollution degree: 3
  • Insulation test voltage: 7400 VRMS / 5 s
  • Electrical charateristics for model with integrator
  • Power voltage: 4 … 26 VDC
  • Max consumption: 5 mADC
  • Nominal output rate: 333 mV / FS (RMS values)
  • FS changes according to the model: 200, 250, 600, 1000 A
  • Positioning error: Better than ±1% of reading
  • Frequency: 50/60 Hz
  • Overvoltage category: 1000 V CAT III, 600 V CAT IV
  • Pollution degree: 3
  • Insulation test voltage: 7400 VRMS / 5 s
Certifications & Standards
  • IEC, UL standards: UL 61010-1 Ed3, UL 61010-2-032, CAN/CSA-C22.2 No. 61010-1, IEC 60529, IEC 61869-10
Product information
8 mm cross section, with UL2808 certification. Standard output level 100mV/1kA@50Hz

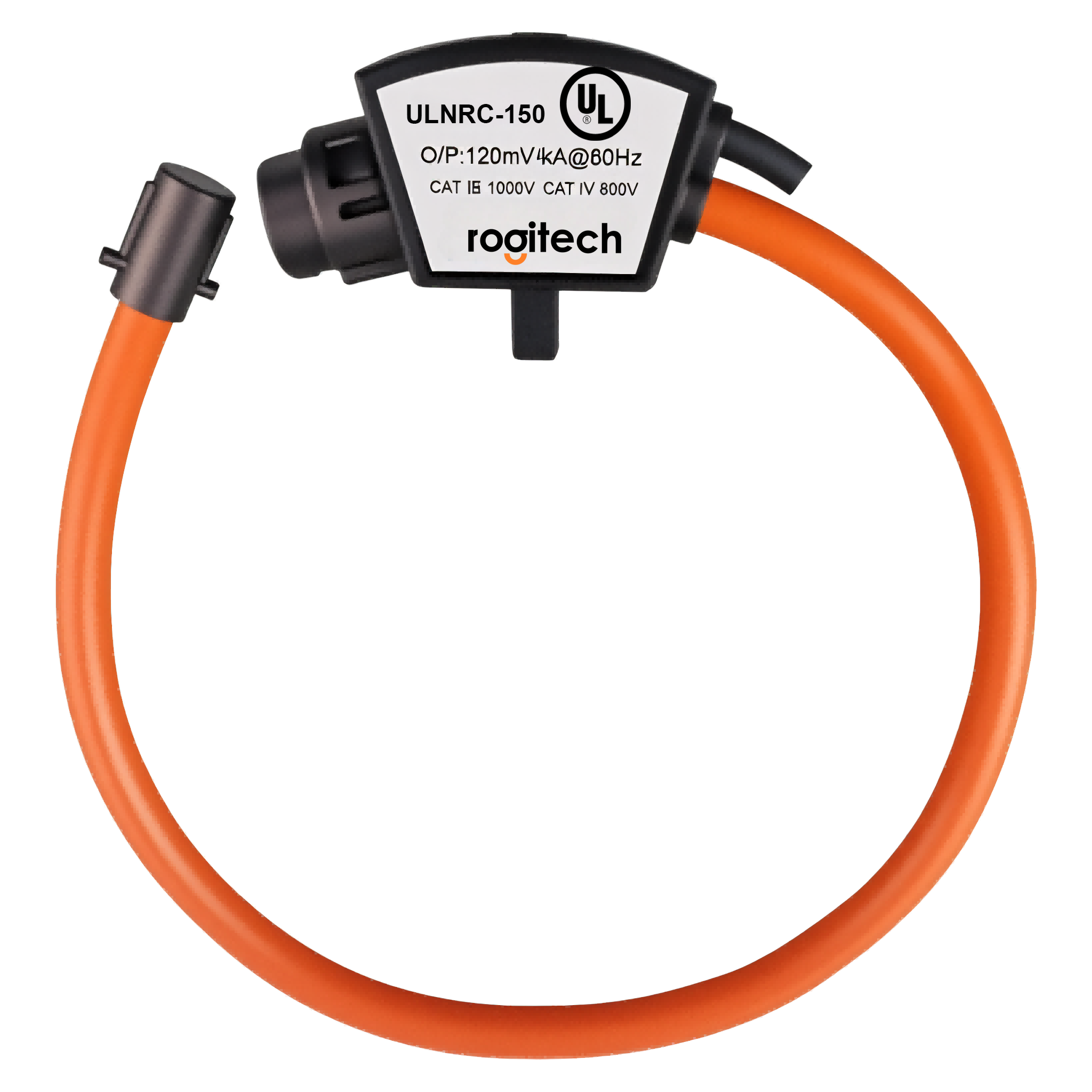

Rogowski Coil NRC150 (8 mm cross section) is a flexible current transducer based on Rogowski principle. NRC150 coils are available in different sizes and can be supplied according to customer's design, therefore they can be used in all those applications, in which traditional transducers are not fitting due to its size and/ or weight.
NRC150 coil is provided with a shield against the influence of external magnetic fields, therefore it grants a stable measurement from low currents to hundreds of kA.
NRC150 can be also provided with built-in integrator, without needing of external devices for 90° phase shift compensation and frequency equalization. This is an advantage because there is no external box with consequent ease of use.
